Acoustic Partition Wall Melamine Finish

Acoustic Partition Wall Sound Insulation Partition Walls Sound Absorbing Material Walls

SKU: Acoustic Partition Wall Category:
General Details

Acoustic Partition Wall Melamine Finish

The acoustic partition wall series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.

The vertical channel of each acoustic partition wall panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound insulation partition walls are available in three thicknesses, 65mm, 80mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).


Acoustic partition wall is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas, etc. can all benefit from the flexibility of partition wall sound insulation system.

The Operation of Acoustic Partition Walls

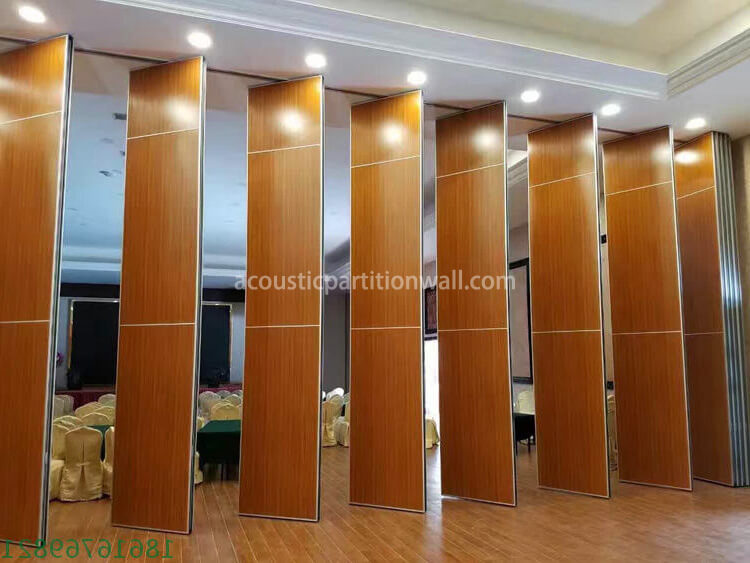

When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.

For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.

Acoustic Partition Wall Sound Insulation Partition Walls Sound Absorbing Material Walls

Acoustic Partition Wall Details and Features

Many panel stack options are completely flexible;
No floor track to get in the way;
Individual acoustic partition wall panel can be stored to maximize the use of space.
Operable top and bottom seals for easy operation;
A wide range of surface finishes are available for hanging room partitions.
High performance multiple fill for maximum noise reduction;
Sound insulation aluminum frame structure, enhance the acoustic effect;
Unique track systems ensure quiet and easy operation;
Three panel thickness are available for a variety of acoustic requirements.
